SGS Digital Triangle Car Paint Gloss Meter Reader Ghs

Product Categories
SINO AGE DEVELOPMENT TECHNOLOGY, LTD.
Contact Now

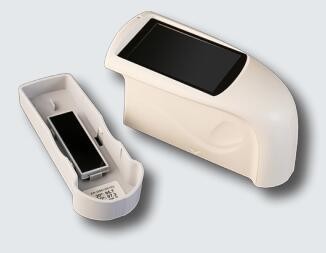

SGS Digital Triangle Car Paint Gloss Meter Reader Ghs

Brand Name : SADT

Model Number : GHS

Certification : ISO9001, CE, SGS

Place of Origin : Made in China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 5000 pcs /year

Delivery Time : 3 days upon advanced payment

Packaging Details : rigid carrying case

Measuring Angle : 20° 60°85°

Measuring Range : 20°：0-1000GU; 60°：0-1000GU; 85°：0-160GU

Measurement Spot (mm) : 20°：10x10mm; 60°：9x15mm; 85°：5x36mm

Resolution (Gu) : 0.1

Repeatability(Gu) : ±0.1(0~10); ±0.2(10~100);±0.2%(100~1000)

Readout Error(Gu) : ±1.5,±1.5%

Measuring Modes : Basic mode

Calibration : Automatic

Language : Chinese & English

Storage : Basic mode: 1000

Display : 3.5” TFT

Size (mm) : 160*75*90

Weight : 350g

Power supply : 3200mAh Li-ion Bat- tery,>10000 times (within 8 hours)

lnterface : USB/RS-232

PC Software : Software can printing testing report and with more extended functions

Operation Temperature : 0~40°C(32~104°F)

Storage Temperature : -20~50°C(-4~122°F)

Humidity : <85% RH, without condensation

Standards : ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Chromaticity Corresponding : Corresponding with CIE 1931(2°) under CIE C light source

Contact Now

Gloss Meter GHS

GHS gloss meter features with 20, 60 and 85° angle, itis widelyused to test glossiness in these industries, such as automobile,paint, ink, stoving varnish, coating, wood products; marble,granite, vitrified polished tile, pottery brick and porcelain; plas-tic, paper; hardware industries, etc.

KEY FEATURES

  • 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
  • Concise appearance, feel good
  • Display 5 sets of measurement data, good for comparison
  • Built-in lithium ion rechargeable battery
  • Basic model measurement can meet basic glossiness testing requirements
  • Connect to PC, more extend functions
  • One button for all angles measurement at the same location
  • Comply with international standards
  • Stable performance, easy to read data.

Standard package - GHS

GHS main unit 1
User manualcalibration plate 1
USB cable 1
Power AdapterSoftware 1

Optional accessory


Miniature printer

Specifications

Model GHS
Measuring Angle 20° 60°85°
Measuring Range 20°:0-1000GU; 60°:0-1000GU; 85°:0-160GU
Measurement Spot (mm) 20°:10x10mm; 60°:9x15mm; 85°:5x36mm
Resolution (Gu) 0.1
Repeatability(Gu) ±0.1(0~10); ±0.2(10~100); ±0.2%(100~1000)
Readout Error(Gu) ±1.5,±1.5%
Auto Power-off Time -
Measuring Modes Basic mode
Calibration Automatic
Language Chinese & English
Storage Basic mode: 1000
Display 3.5” TFT
Size (mm) 160*75*90
Weight 350g
Power supply

3200mAh Li-ion Bat-

tery,>10000 times

(within 8 hours)
lnterface USB
PC Software

Software can printing testing report and with

more extended functions
Operation Temperature 0~40°C(32~104°F)
Storage Temperature -20~50°C(-4~122°F)
Humidity <85% RH, without condensation
Standards ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
