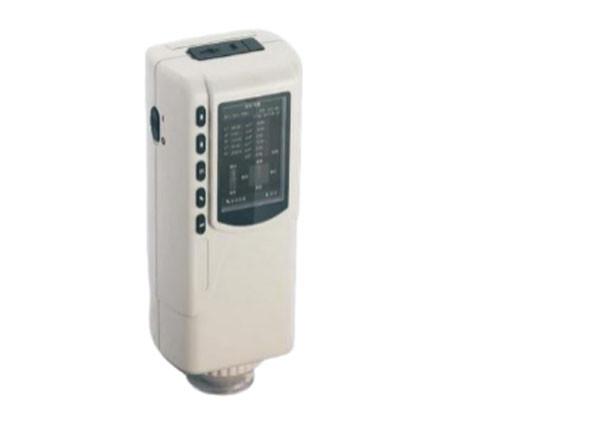

Tft Display USB Color Difference Meter Coloremimeter

Brand Name : SADT

Model Number : SC40

Certification : ISO9001 CE SGS

Place of Origin : Made in China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 5000 pcs /year

Delivery Time : 3 days upon advanced payment

Packaging Details : rigid carrying case

Display : TFT True Color 2.8inch@ (16:9)

Color Space : CIEL*a*b

Color Difference Formula : △E*ab

Illuminating/Viewing Geometry : 8°/d

Sensor : Silicon photoelectric diode

Measuring Aperture : Ф4mm

Locating : llluminating Locating/Cross Locating

Light Source : D65

Light Source Device : LED blue light excitation

Lamp Life : 5 years,more than 1.6 million

Errors Between Each Equipment : ≤0.20ΔE*ab

Dimension : 205x67x80mm

Storage : 100pcs standards10000pcs samples

Weight : 450g

Repeatability : Standard deviation within ΔE*ab 0.03 Average of 30 measurements of standard white plate

Power source : Rechargeable lithium-ion battery 3.7V@3200mAh

Charging Time : 2 hours(8 hours for first charge)--100% electricity

Operating temperature : -10~40°C (14°F~104°F)

Humidity range : relative humidity 0~85% with no condensation

Data interface : USB RS232

PC Software : N/A

Printer(optional) : Micro thermal printer

Contact Now

Precise Colorimeter SC40

SC40 his instrument is researched and developed in accord-ance with CIE (International Commission on Illumination) andCNS (China National

Standards). It is a high precise colorimeterwith simple user interface and stable performance. It can be powered.

by both Li-ion battery and external DC power supply.
SC-40 economic colorimeter, which is a higher cost-effective model.With theadvantages of high precision,high performance and low price, this model hasbeen widely used in food, chemical industry, electronics, automobile, cosmet-ics and other fields.

KEY FEATURES

Built-in white plate parameters.No need to calibrate each time which realizes rapid measurement.Double Locating: Illuminating locating and precise cross locating.

Switchable Double Measurement End tace: Large area stable end tace and small area measurement

4mm Measuring Aperture: suitable for more measurement circumstances.

Small and convenient, make the measurement easier.

quipped with rechargeable high-capacity Li-ion battery.No need to purchase battery repeatedly

Standard package - SC40

SC40 main unit 1

Wristband 1

AC adaptor 1

Operating instruction 1

Optional accessories

Micro thermal printer

Specifications

Model SC40
Display TFT True Color 2.8inch@ (16:9)
Measurement End-face -
Color Space CIEL*a*b
Color Difference Formula △E*ab
Illuminating/Viewing Geometry 8°/d
Sensor Silicon photoelectric diode
Measuring Aperture Ф4mm
Locating llluminating Locating/Cross Locating
Light Source D65
Light Source Device LED blue light excitation
Lamp Life 5 years,more than 1.6 million
Errors Between Each Equipment ≤0.20ΔE*ab
Dimension 205x67x80mm
Storage 100pcs standards10000pcs samples
Weight 450g
Repeatability

Standard deviation within ΔE*ab 0.03 Average of 30

measurements of standard white plate
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Charging Time 2 hours(8 hours for first charge)--100% electricity
Operating temperature -10~40°C (14°F~104°F)
Humidity range relative humidity 0~85% with no condensation
Data interface USB RS232
PC Software N/A
Printer(optional) Micro thermal printer
